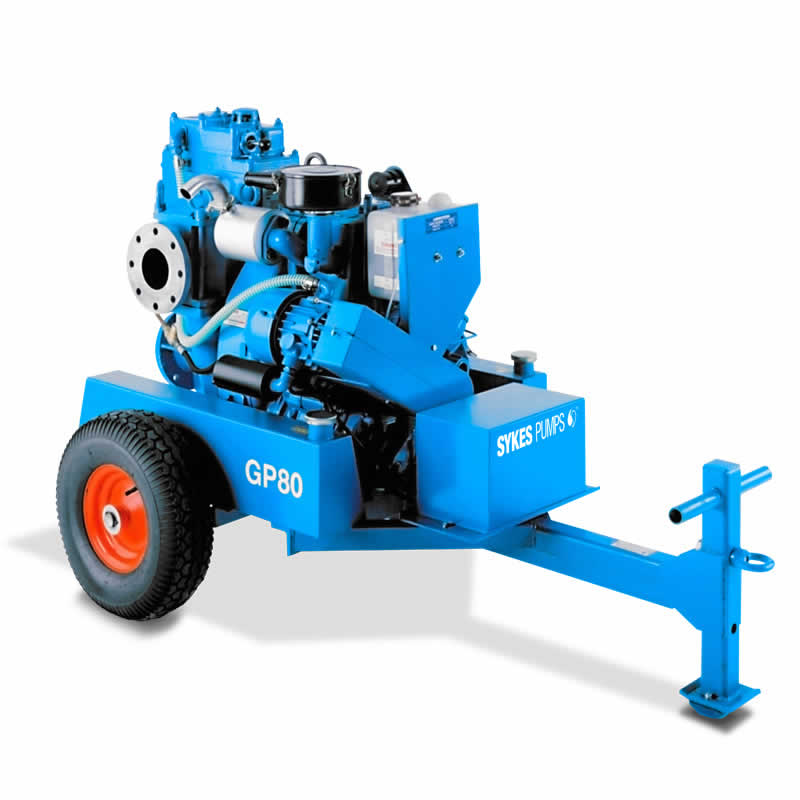

GP 80 General Purpose Pump

The GP 80 is typically a contractor’s general purpose pump capable of delivering flows up to 34 litres per second and a maximum head of 24 metres. Used wherever there’s a need for reliable automatic self-priming, the GP 80 incorporates the unique Sykes Univac vacuum system. This enables the pump to prime and re-prime fully automatically from dry. The GP 80 is powered by a 6.7kW Lister engine and is available on a robust 2 wheeled site chassis.

Key Features

Feature

Feature

Hours of unattended

operation for continuous use

Hard

wearing parts for robust applications

Automatic priming and re

priming

Compact and manoeuvrable

for simple redeployment

40 mm solids

handling

Electric start for

swift functionality

Economical operation for

greater fuel efficiency

Standard open

set unit

Product Specification

  • Performance : Max head
  • Weight : 455 kg with fuel
    425 kg without fuel
  • Dimensions (L x W x H) : 1700 x 1190 x 1093 mm
  • Noise level : @ 1m = 95-98 dBA
    @7m = 78 – 82 dBA
  • Fuel capacity : 35 litres. Max 24 hours with cleaning and flushing facilities
  • Pipe connections : Suction
  • Fuel Consumption : Full load @ 1800 rpm
  • Energy Efficient duty point : Fuel Consumption @ 1500 rpm

Accessories

  • 3″ SPLIT INTAKE
  • 3″ 20FT W/A SUCTION HOSE BAUER
  • 3″ 20FT POLYTUBE
  • 3″ X 6M HELIFLEX PVC BAUER HOSE
  • 3″ LAYFLAT HOSE PER METRE
  • 3″ BLUE LAYFLAT X 25M CW BAUERS
  • 3″ 90* BEND
  • 3″ GATEVALVE
  • 3″ NON RETURN VALVE
  • BUNDED FUEL TANK 1000 LITRE
  • RETAIL GAS OIL
  • DRIP TRAY 2440MM X 1525MM
  • DRIP TRAY 2058MM X 1525MM
  • ROAD RAMP C/W 6″ PN16 FLANGES
  • ROAD RAMP WIDE C/W 6″ PN16 FLANGES

Environments

  • Environmental
  • Emergency Pumping Services
  • Docks, Ports and Harbours
  • Refineries
  • Water and Waste Treatment
  • Local Authorities
  • Over-pumping
  • Offshore and Float Outs
  • Quarries and Mines
  • Building and Construction
  • Manufacture and Industry
  • Power Stations
  • Tunnelling
  • Construction projects
